Contracor  |  SKU: CTR-14380001
Made in Germany German Flag

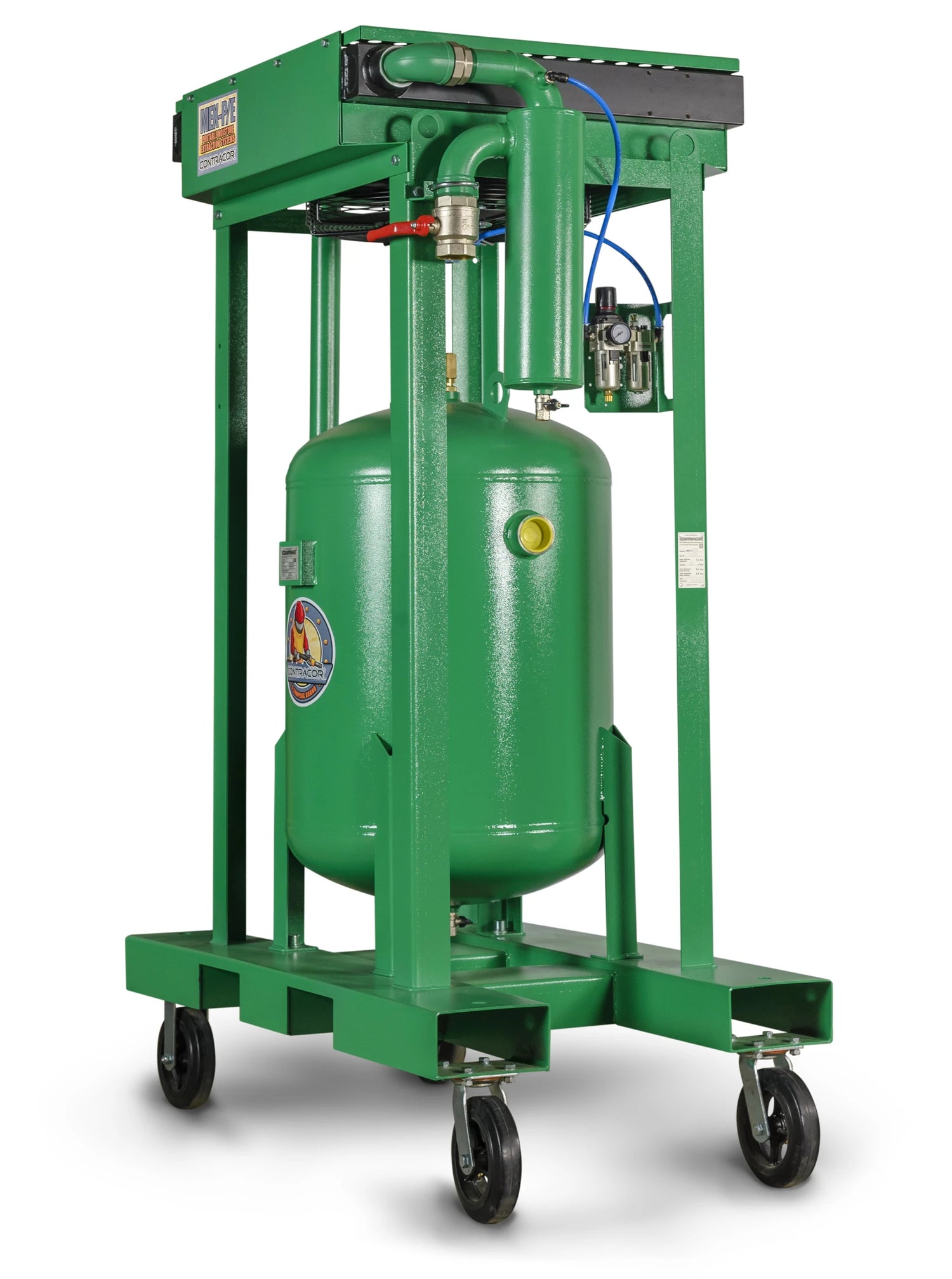

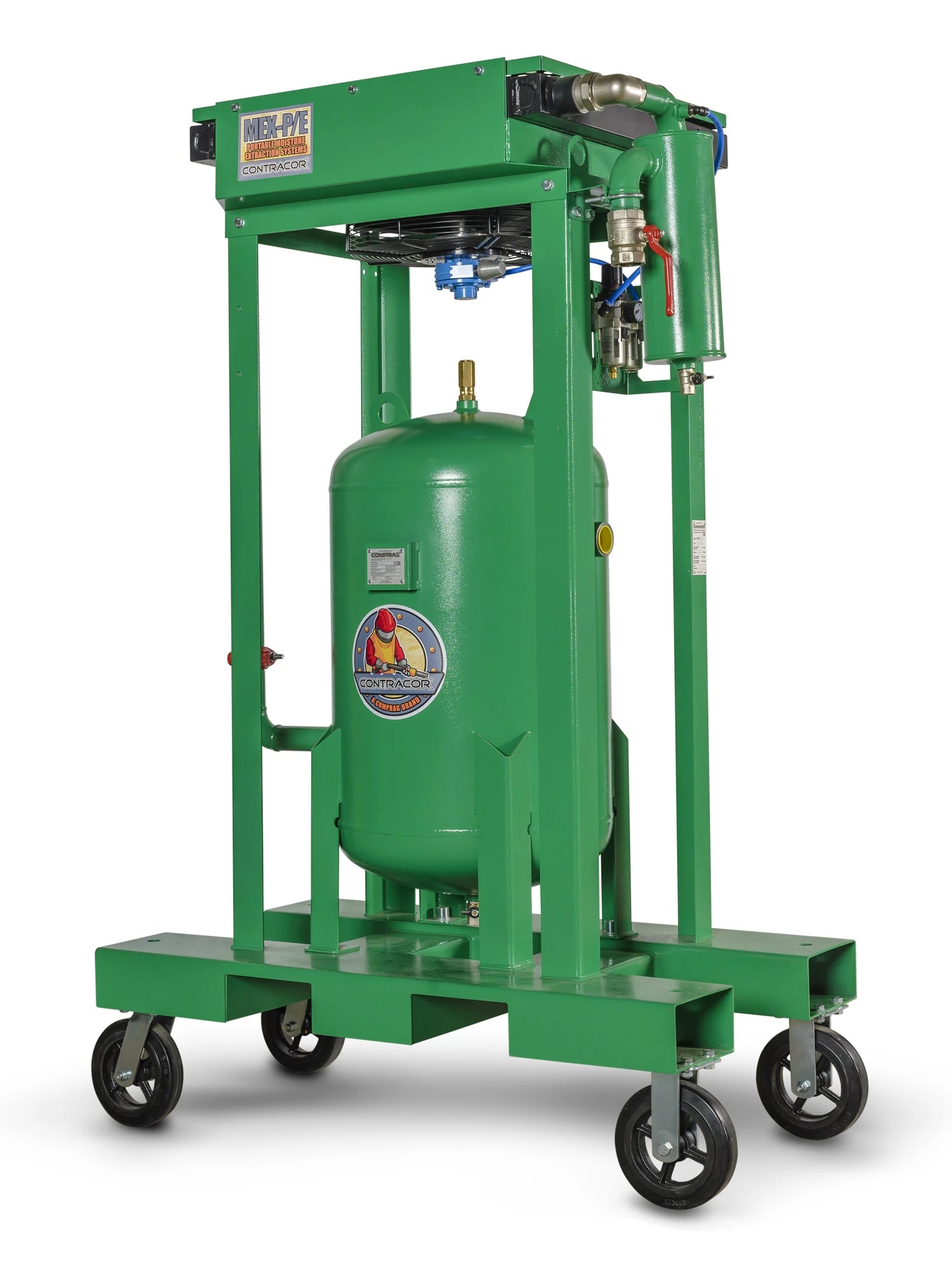

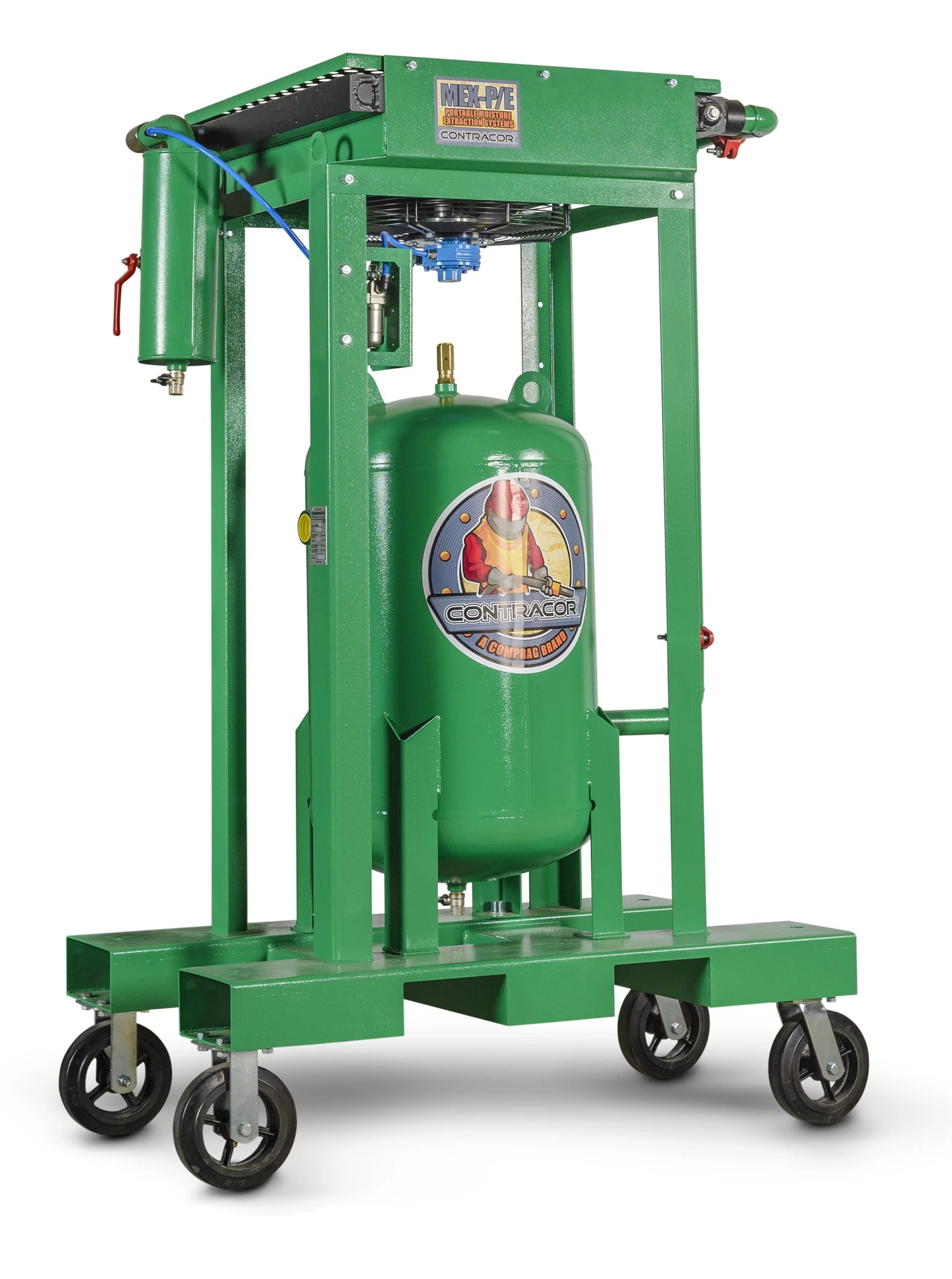

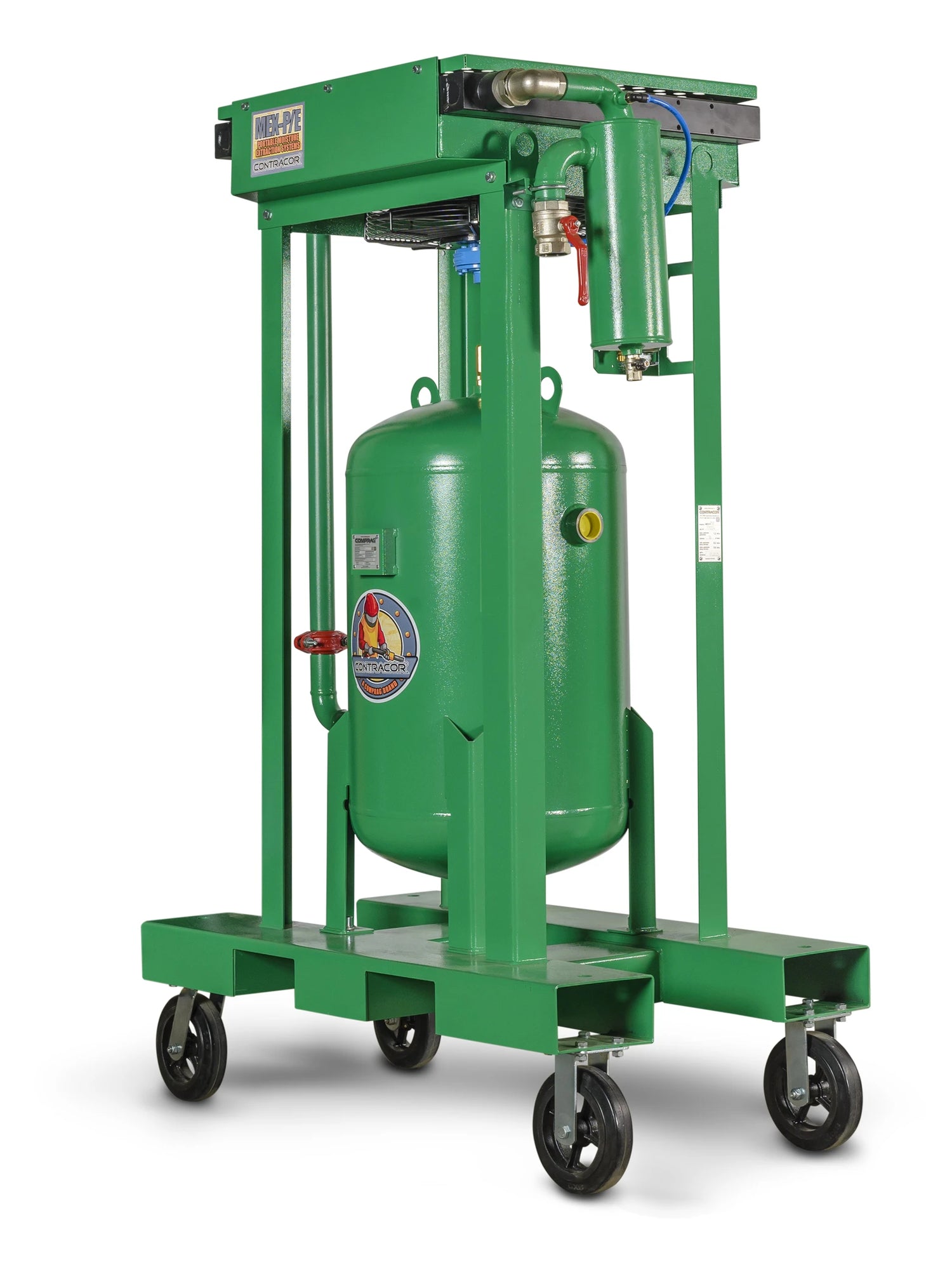

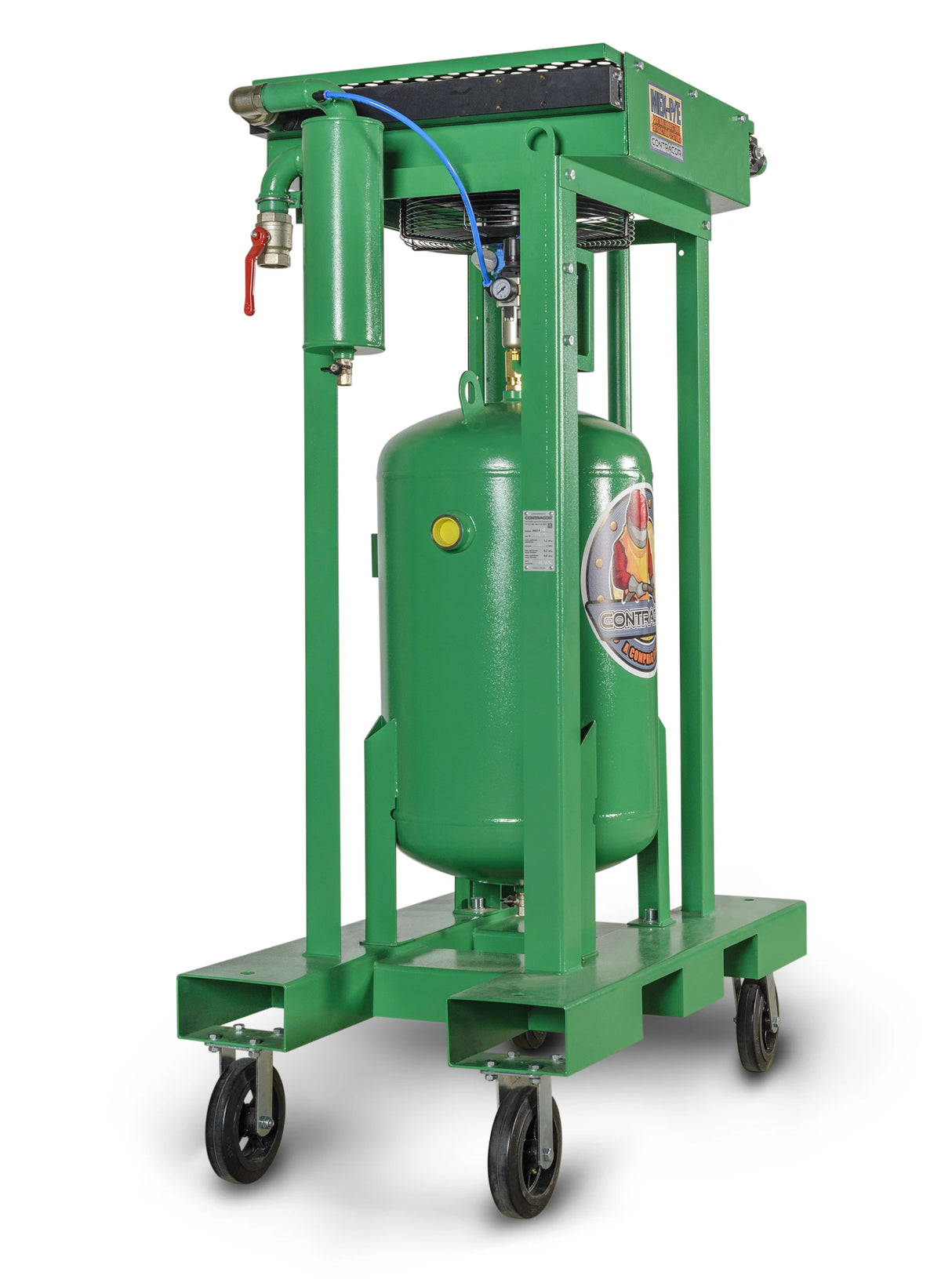

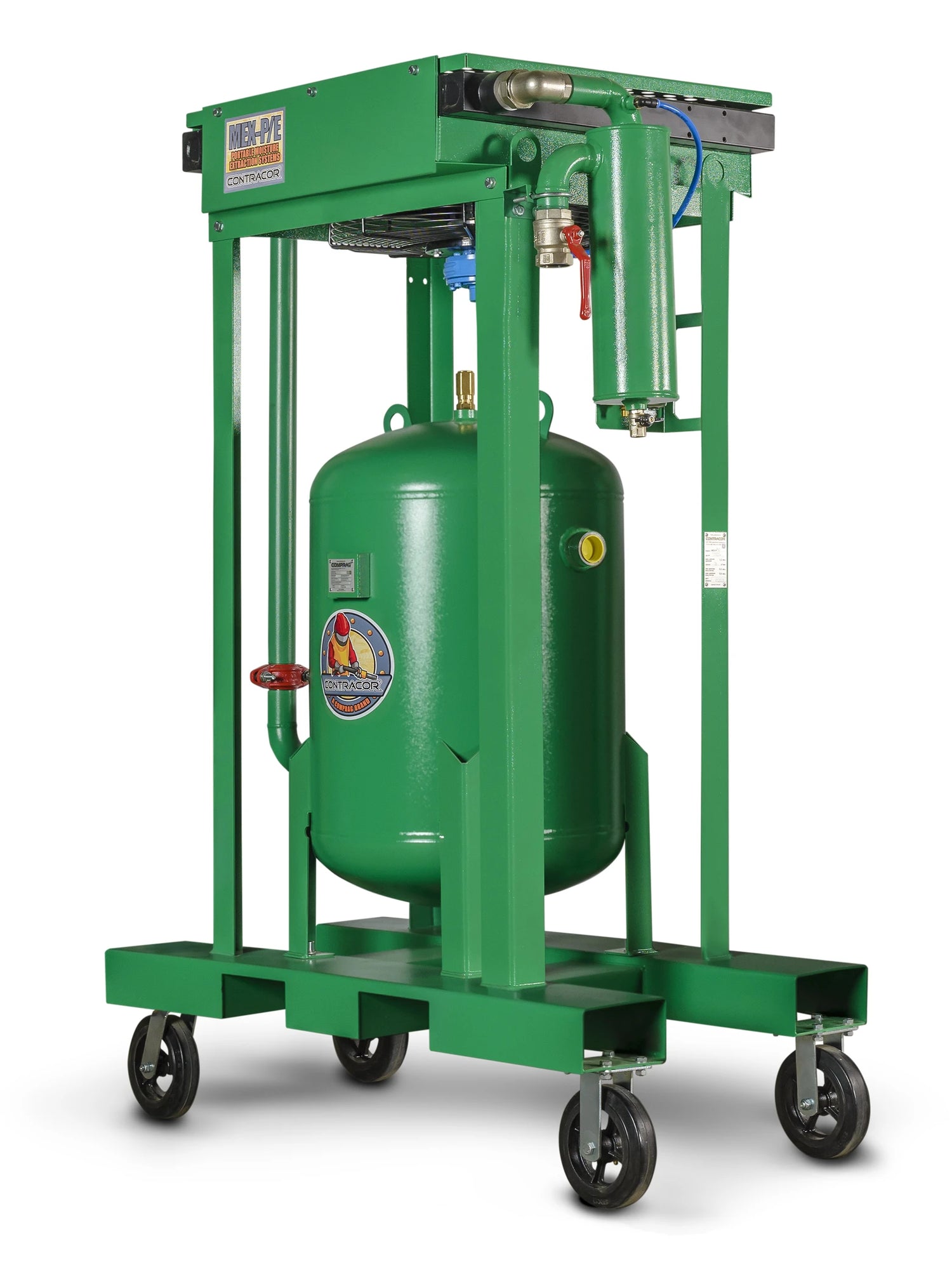

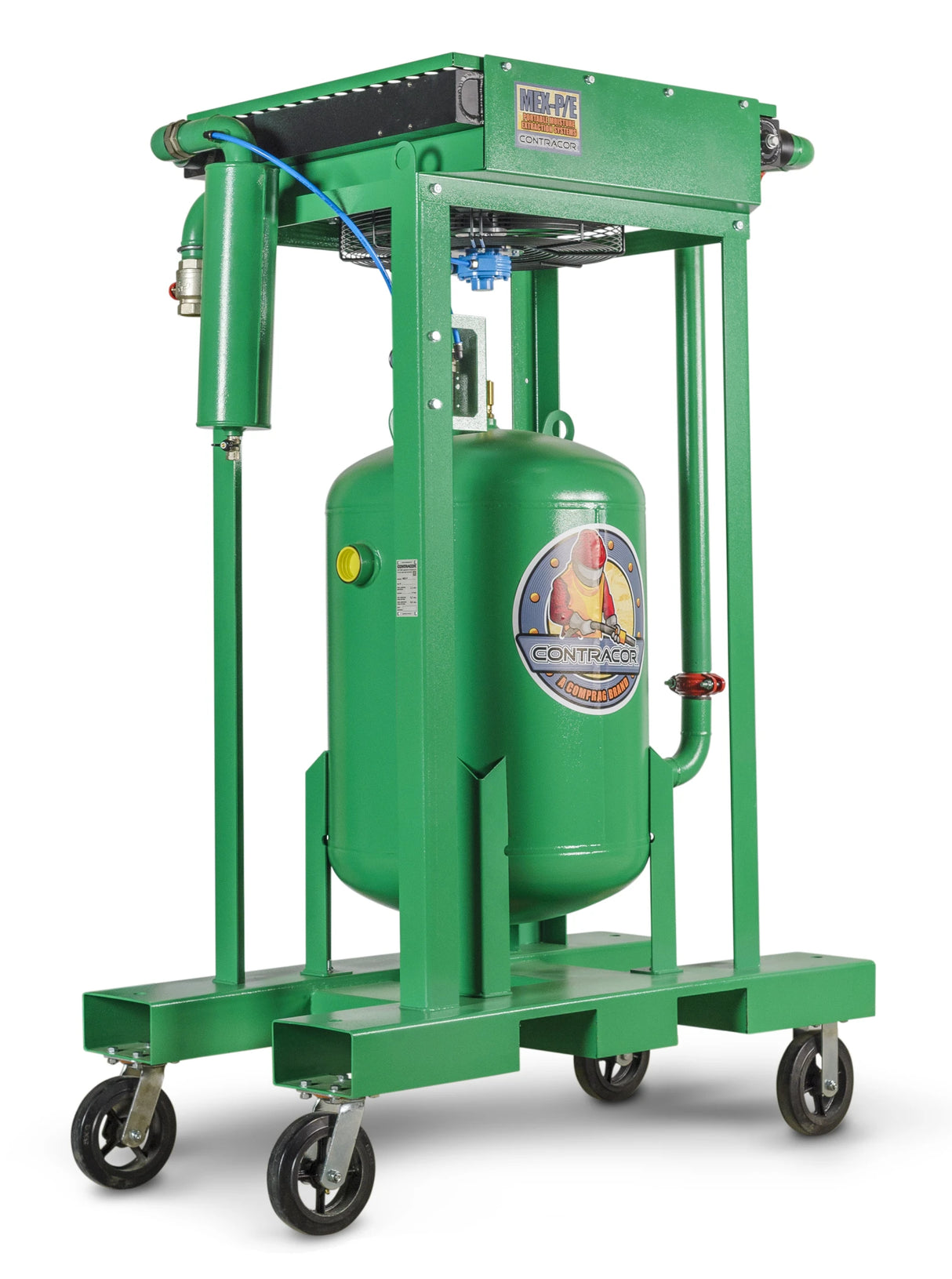

Contracor MEX Pneumatical Moisture Extraction System

£3,018.00  incl. VAT

Capacity

   Shipping

This product is custom-made for you, shipping depends on configuration

Business orders?

You can easily place business orders at Reemster. On the cart page, select "business" and automatically enjoy the following benefits:

  • Fast delivery: Quick and reliable shipping with track & trace.
  • Personal service: Access to our business customer service.
  • Volume discount: Discounts on bulk orders are automatically applied to your cart.
  • Invoice: Clear and itemized VAT invoice, optionally with your own reference number.
  • VAT reverse charge: Do you have a VAT number? Enter your VAT number on the cart page. Our systems will verify the VAT number and apply 0% VAT at checkout if the number is valid.

Questions about business orders? Contact us.

The Contracor Moisture Extraction System is the perfect solution for removing condensate and oil from the air stream during abrasive blast cleaning. The system is designed to efficiently remove up to 95% of condensate and oil, which can cause increased wear and downtime. With the system in place, you can expect increased performance and reduced maintenance costs.

Designed for any type of portable and stationary screw (diesel) compressor. Compressed air flowing out of an diesel compressor has a high temperature up to approximately 90°C. At such a temperature, compressed air contains a large amount of moisture in the form of steam vapour. When an aftercooler and cyclone condensate separator are not used, compressed air can add up to 21 litres of water per hour into the system (with a compressor operating at 5.7 m³/min capacity and a pressure of 7 bar). Contracor MEX systems cool compressed air to a temperature 3-10°C higher than the ambient temperature. Once the air is cooled, vapour moisture condenses and up to 95% of condensed moisture is eliminated from the air stream.

Coalescence element
The compressed air inside the receiver passes through a mesh coalescing filter element. Moisture and oil are deposited on the element and form large drops, which under the action of gravity fall to the bottom.

Properties
  • Durable, full welded construction
  • Pneumatic drive
  • Efficient cyclone separator
  • Distributing header to (three or four) ball valves
  • Pressure controller / filter / lubricator
  • Lifting lugs and forklift slots

Technical data
  MEX-P-1 MEX-P-2
Maximum working pressure (bar) 12 12
Vessel volume (litres) 150 250
Capacity (m³/min) 20 30
Pressure of air motor min/max(bar)
2 / 6
2 / 6
Consumption of compressed air with min/max pressure of air motor (m³/min)
0,6 / 1,4 0,6 / 1,4
Thread connection, inlet 1½"" 2””
Thread connection, outlet

1x¾"
1x1"
1x1¼"

1x¾”
1x1¼”
1x1½”
